BOLT
— Hardware catalogue

Seven formats.
One platform.

Pixels and software, speaking the same language.

We design and manufacture every screen, then build the software that drives it. Indoor and outdoor, single and double-sided — every panel arrives running BOLT, out of the box.

Formats
7
Indoor + outdoor
Sizes
4
55″ · 65″ · 75″ · 85″
From
£2,195
55″ indoor wall mount
Preview at size
685 mm × 1218 mm · 40 kg
— Section 01 · Indoor

Indoor screens.

Slimmer, quieter, calibrated for indoor light. Designed to look like they belong in a lobby, a shopfront or a concourse — not like signage bolted to a wall. 4 formats

55″
1-SIDED
BOLT
1 000 nit

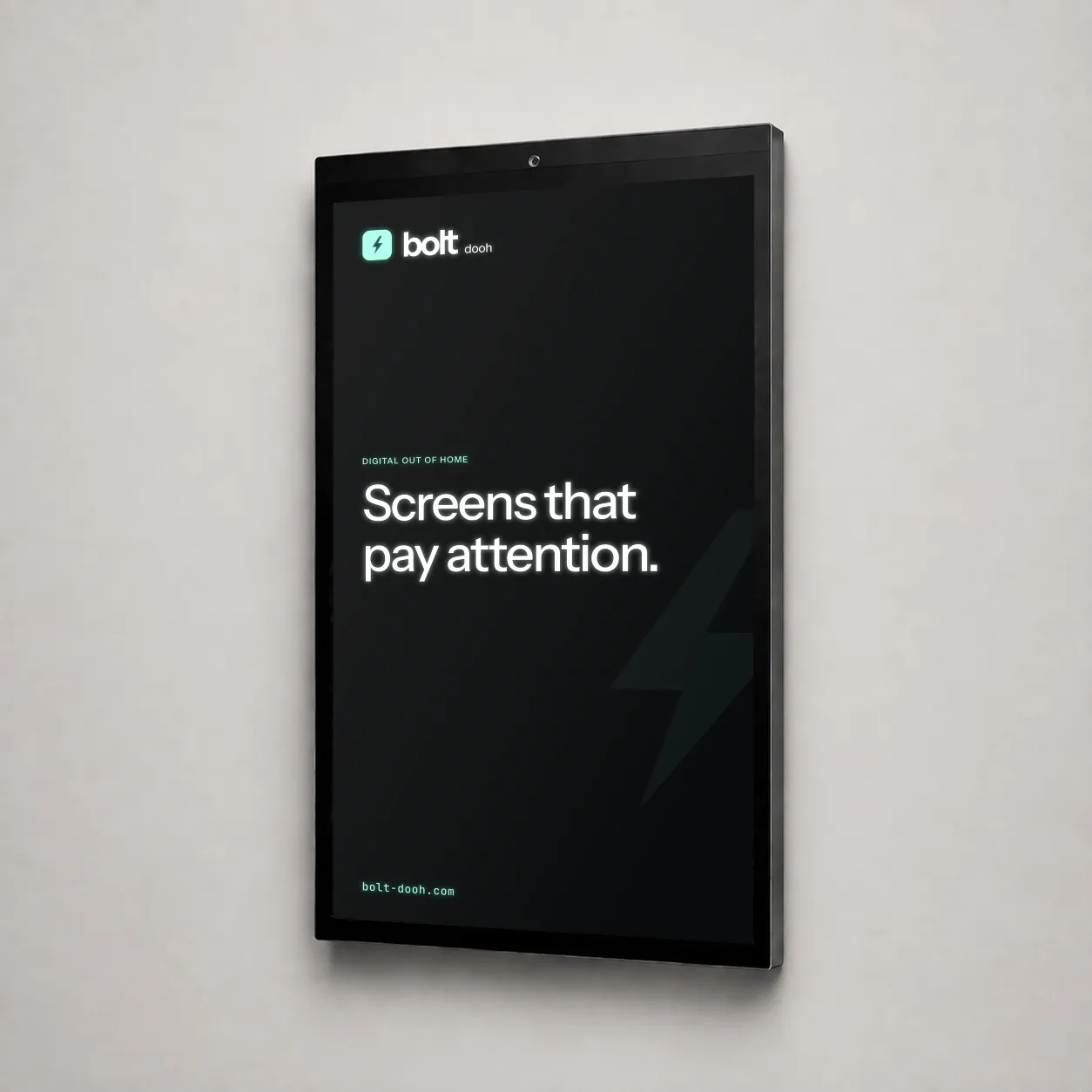

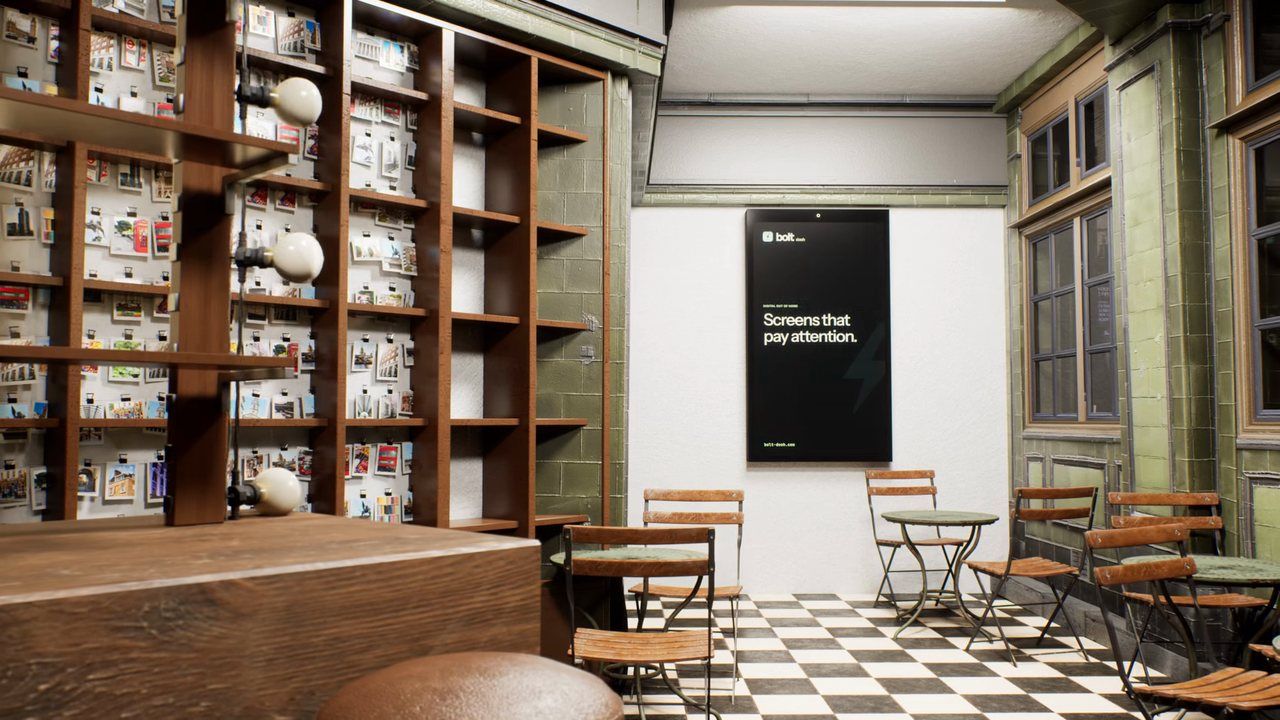

/01 Single-sided · Indoor

The Wall

Lobbies, retail, hospitality, transit interiors.

55″ · ex VAT
£2,195
From
£2,195 · 55″
Brightness
1 000 nit
Sides
Single
Panel
685 × 1218 mm
Weight
40 kg
Install · Tempered glass in a metal frame. VESA-compatible bracket, 28 mm depth from wall.
55″
1-SIDED
BOLT
2 500 nit

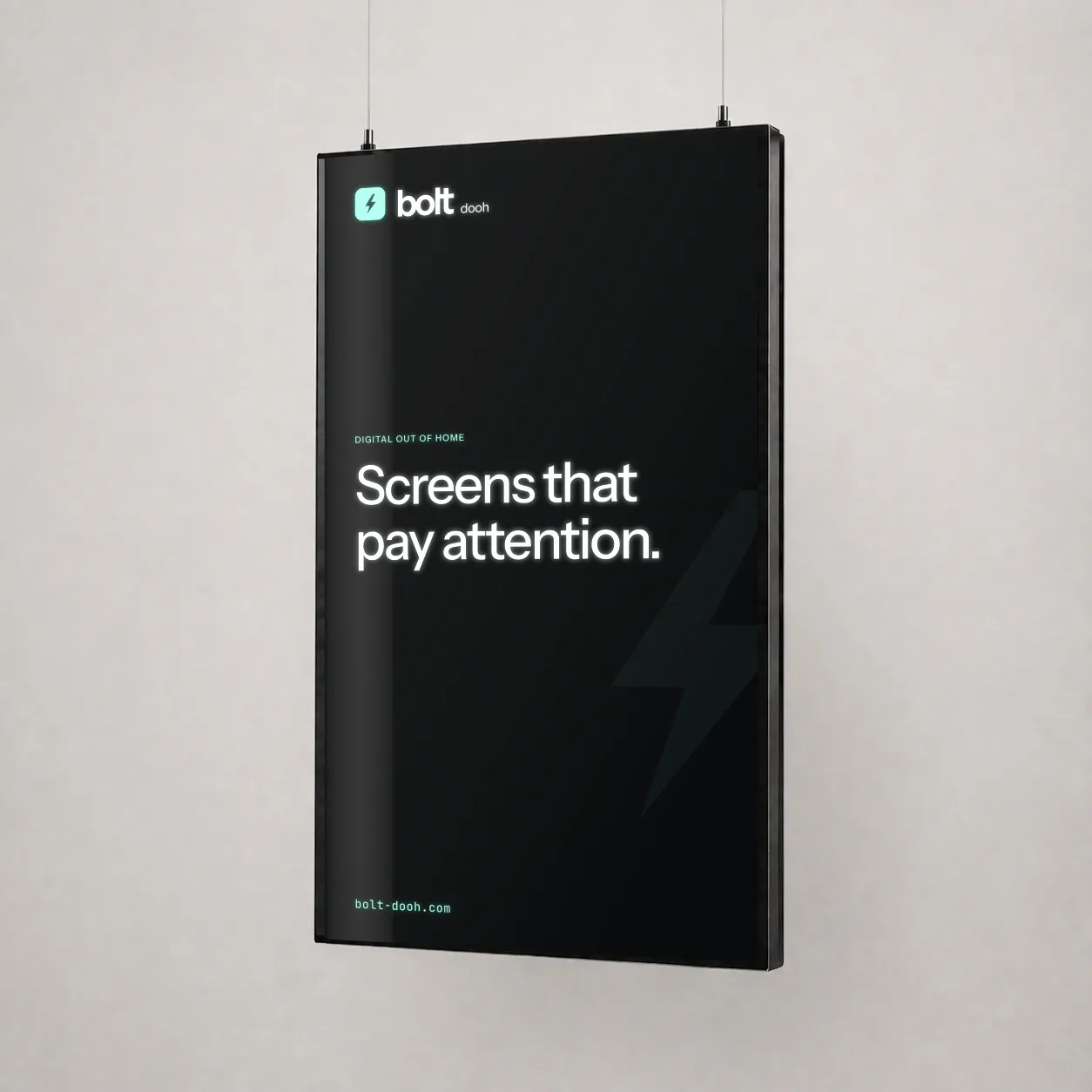

/02 Single-sided · Indoor

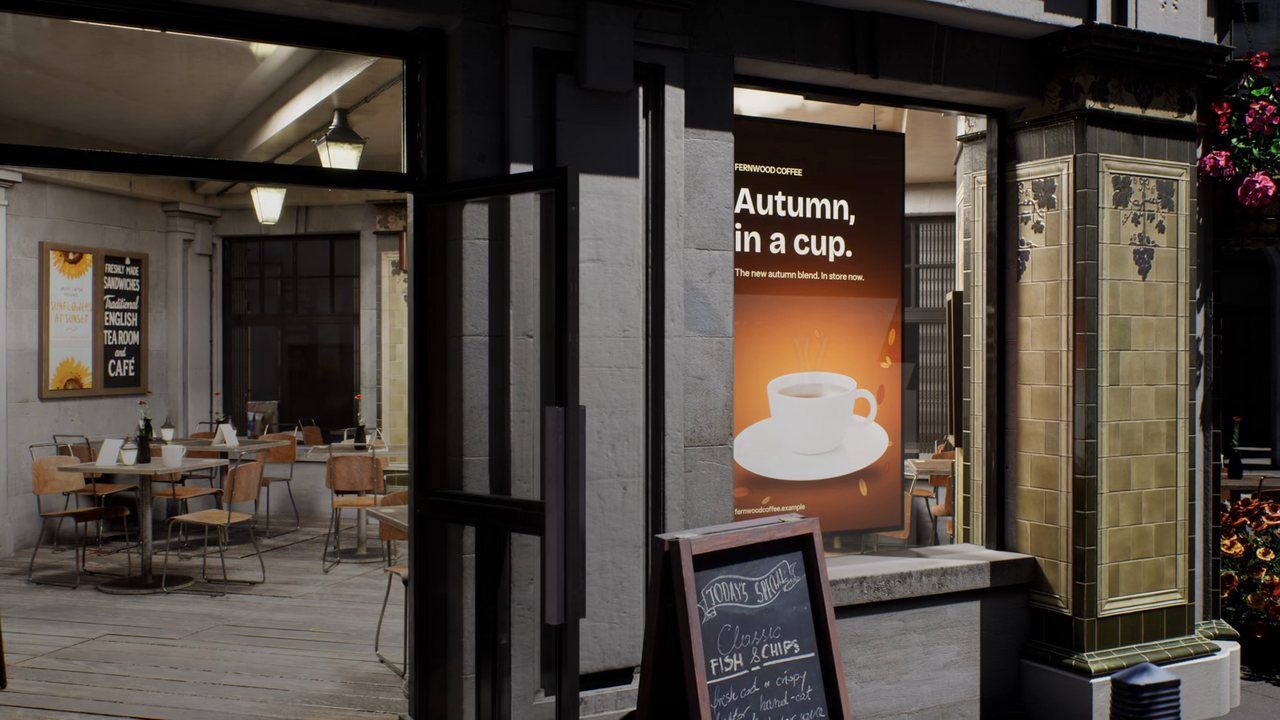

The Window

Shopfronts, receptions, anywhere a screen sits inside a window facing the street.

55″ · ex VAT
£2,295
From
£2,295 · 55″
Brightness
2 500 nit
Sides
Single
Panel
685 × 1218 mm
Weight
38 kg
Install · Free-hanging or floor frame. Active cooling, ambient light sensor.
55″
1-SIDED
BOLT
450 nit

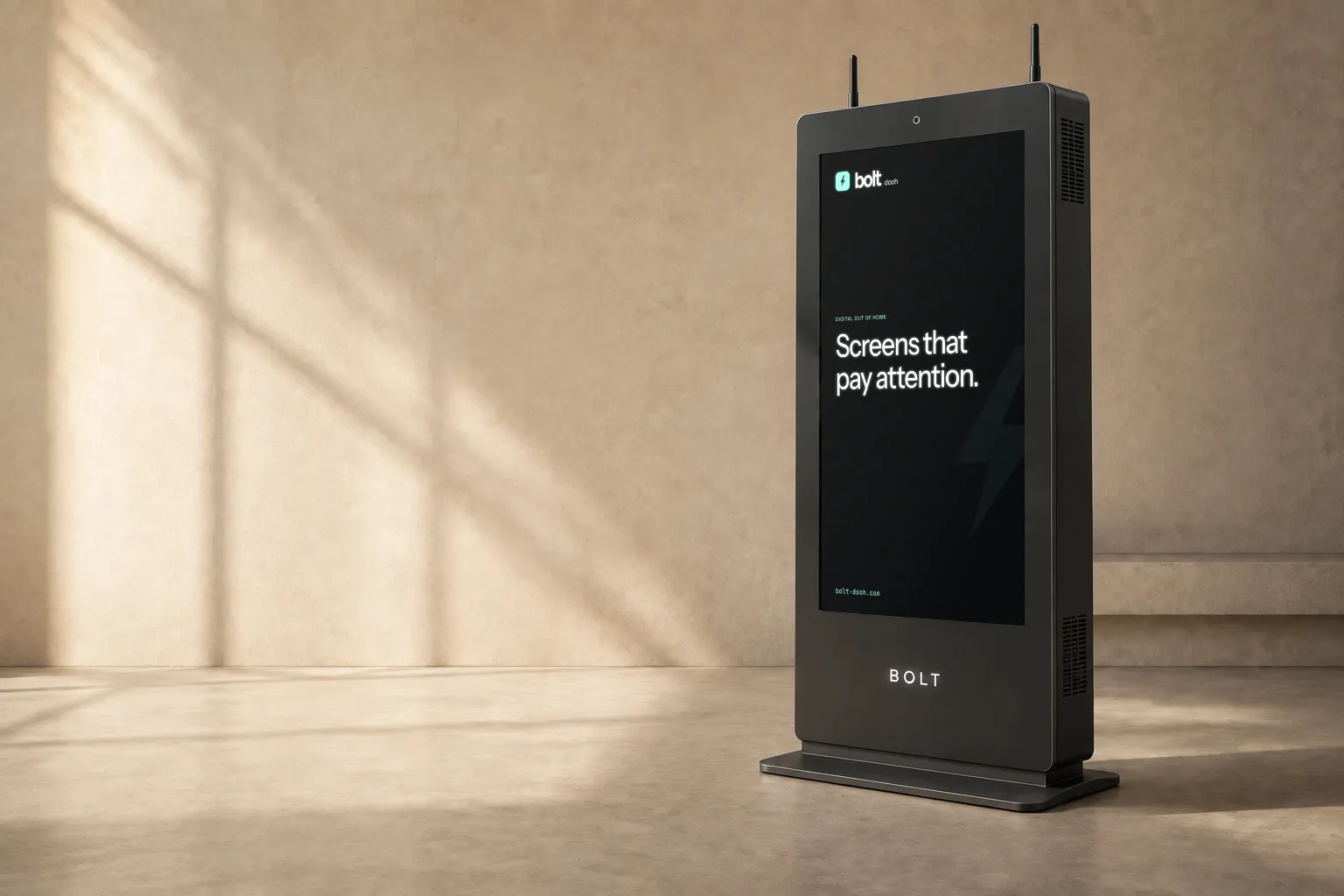

/03 Single-sided · Indoor

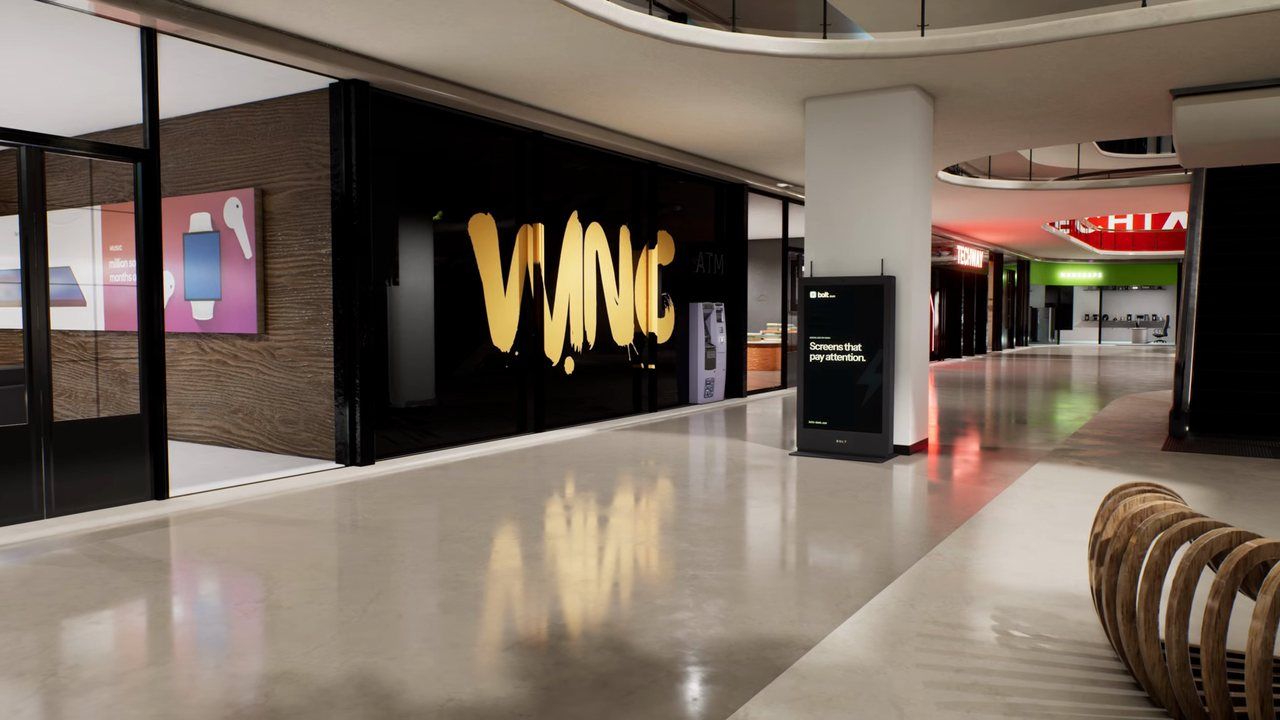

The Single Totem

Concourses, malls, foyers, exhibition spaces.

55″ · ex VAT
£2,195
From
£2,195 · 55″
Brightness
450 nit
Sides
Single
Panel
685 × 1218 mm
Weight
70 kg
Install · Tempered glass in a metal frame. Floor-weighted plinth, no fixing required.
55″
2-SIDED
BOLT
450 nit
/04 Double-sided · Indoor

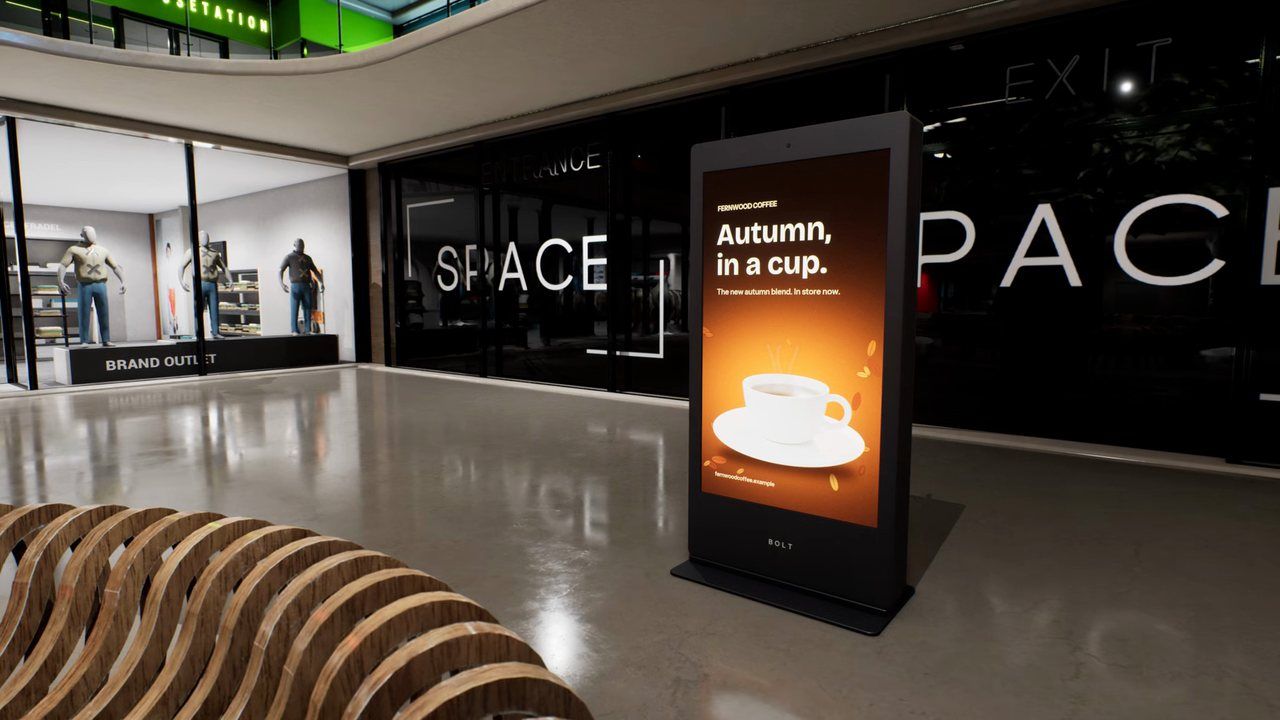

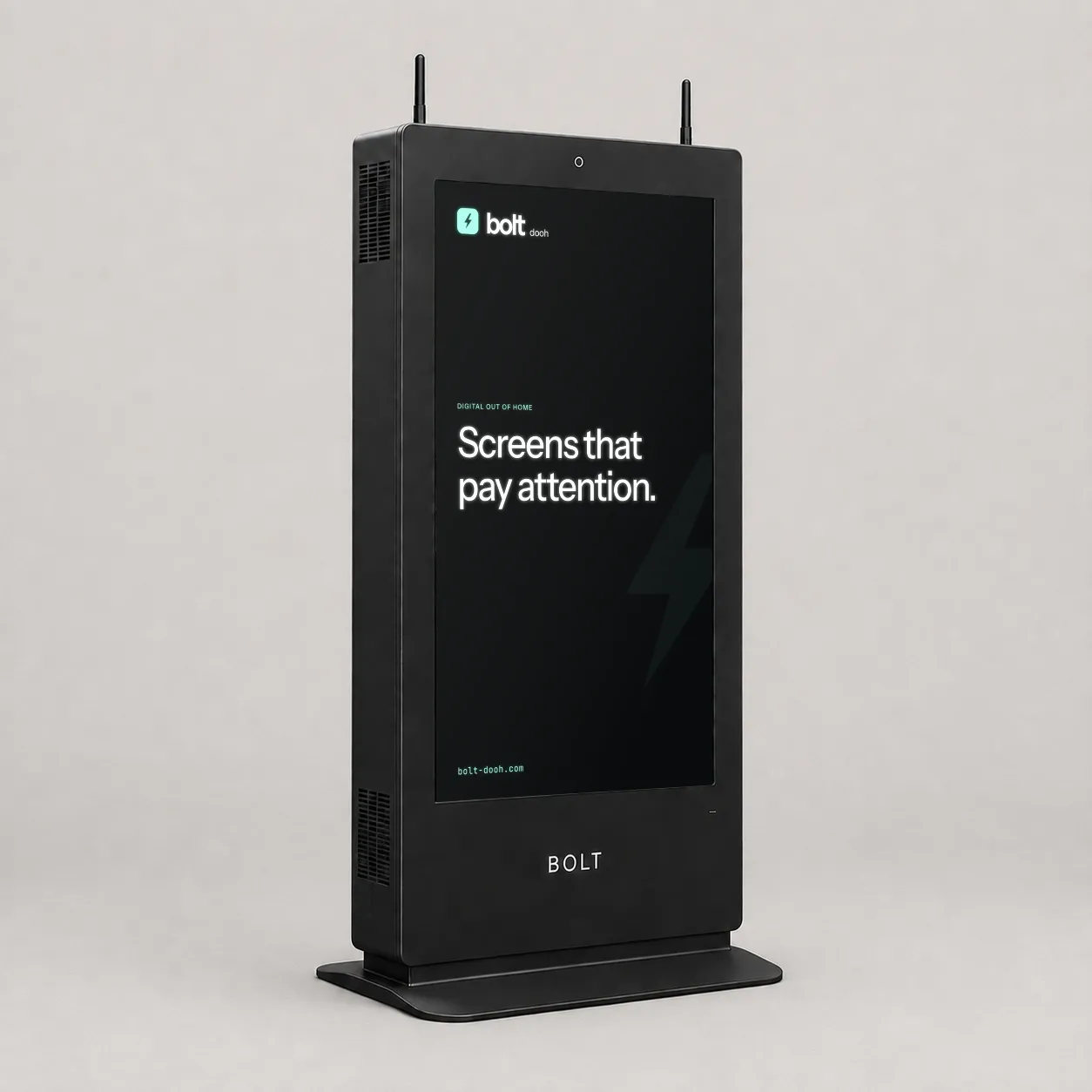

The Double Totem

Walkways, two-way thoroughfares, central atria.

55″ · ex VAT
£4,295
From
£4,295 · 55″
Brightness
450 nit
Sides
Double
Panel
685 × 1218 mm
Weight
88 kg
Install · Tempered glass in a metal frame. Floor-weighted plinth, two synced panels, one player.
— Section 02 · Outdoor

Outdoor screens.

Bright enough to read in direct sun. Sealed and climate-controlled enough to shrug off a British winter. Built to keep playing while nobody thinks about them. 3 formats

55″
1-SIDED
BOLT
2 500 nit
/05 Single-sided · Outdoor

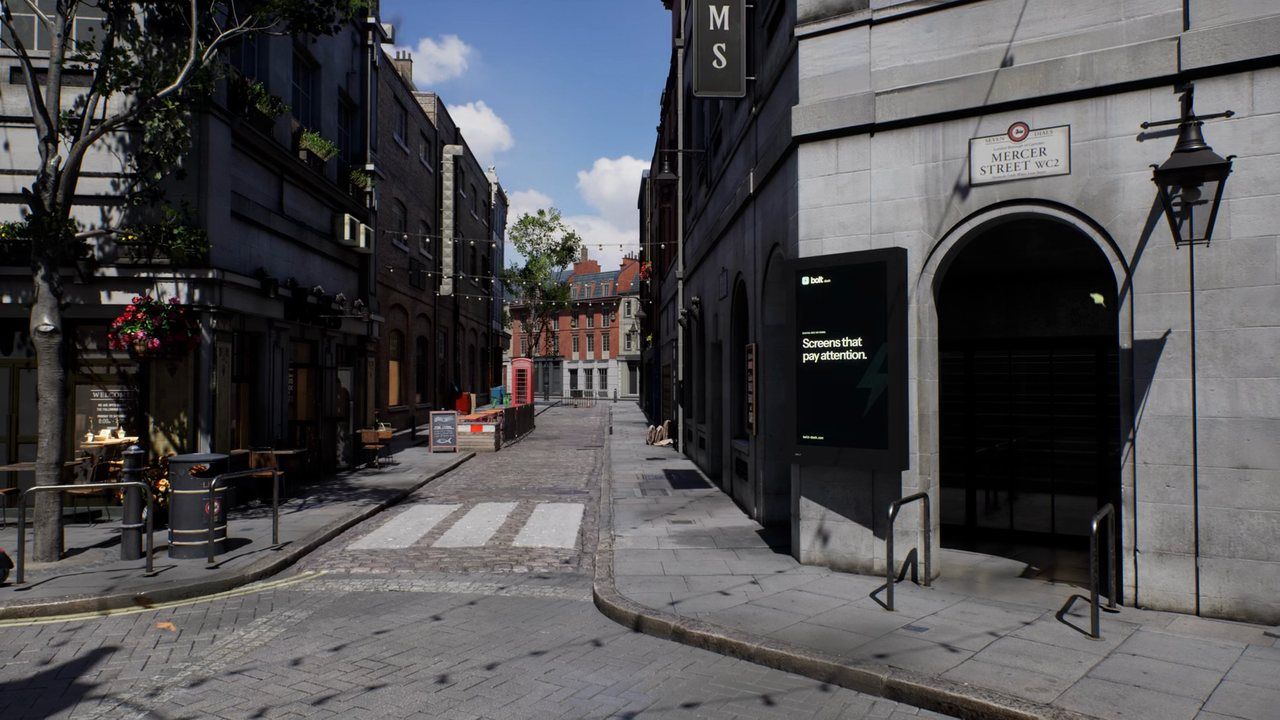

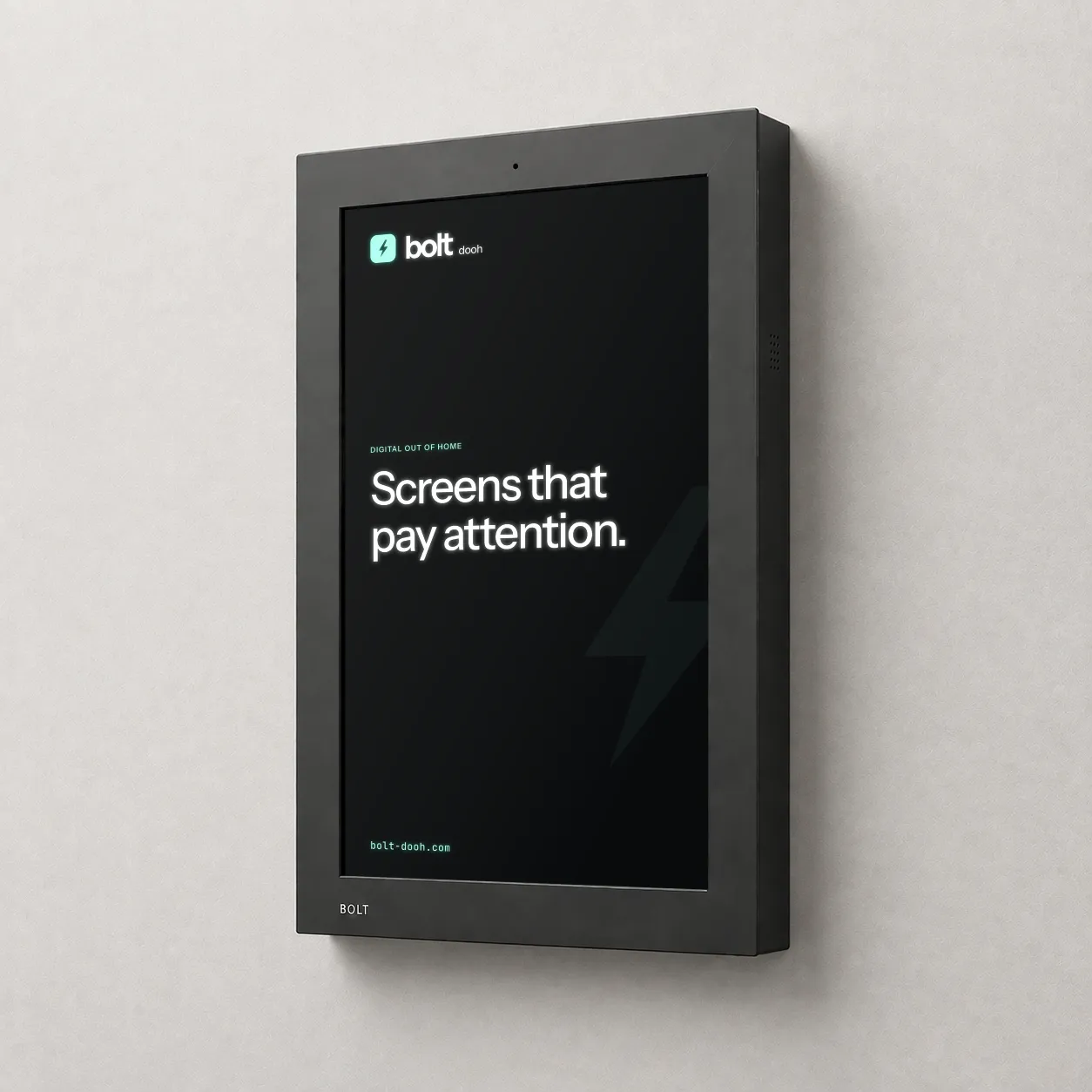

The Wall

Building façades, side-of-store, car parks. IP55 rated.

55″ · ex VAT
£3,995
From
£3,995 · 55″
Brightness
2 500 nit
Sides
Single
Panel
685 × 1218 mm
Weight
70 kg
Install · Tempered glass in a metal frame. Steel wall bracket, weather-sealed, 110 mm depth.
55″
1-SIDED
BOLT
2 500 nit

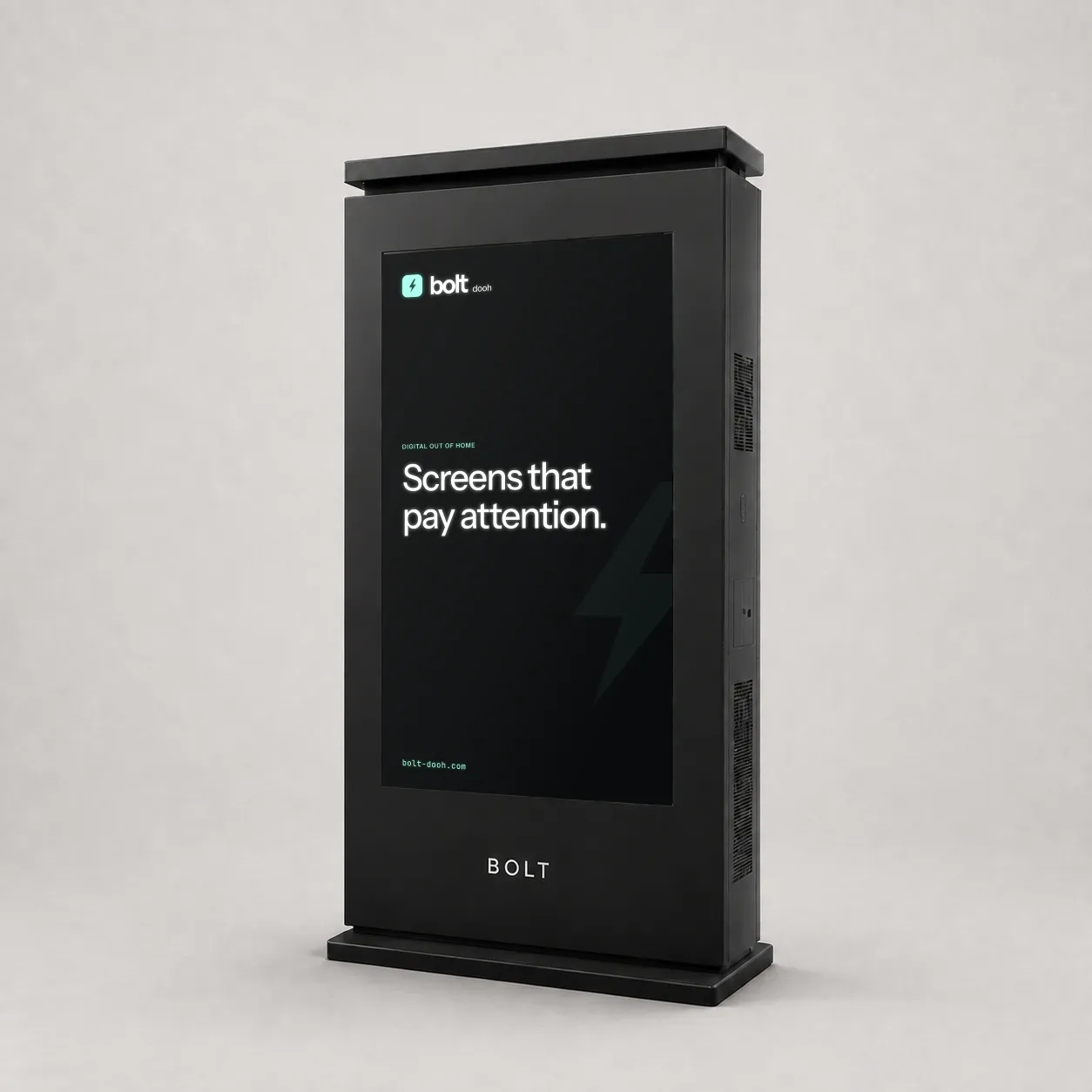

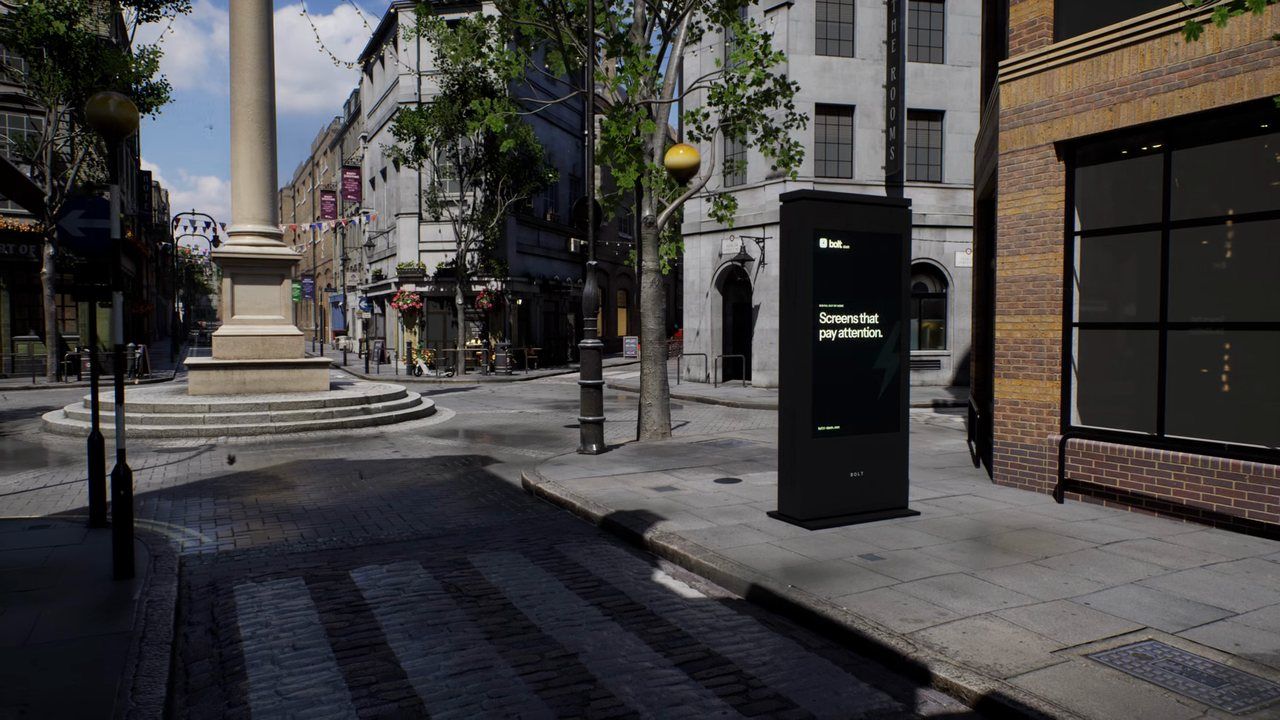

/06 Single-sided · Outdoor

The Single Totem

Forecourts, pavements, queue lines, drive-throughs.

55″ · ex VAT
£6,495
From
£6,495 · 55″
Brightness
2 500 nit
Sides
Single
Panel
685 × 1218 mm
Weight
270 kg
Install · Tempered glass in a metal frame. Ground-anchored steel base, IP55, active climate control.
55″
2-SIDED
BOLT
2 500 nit
/07 Double-sided · Outdoor

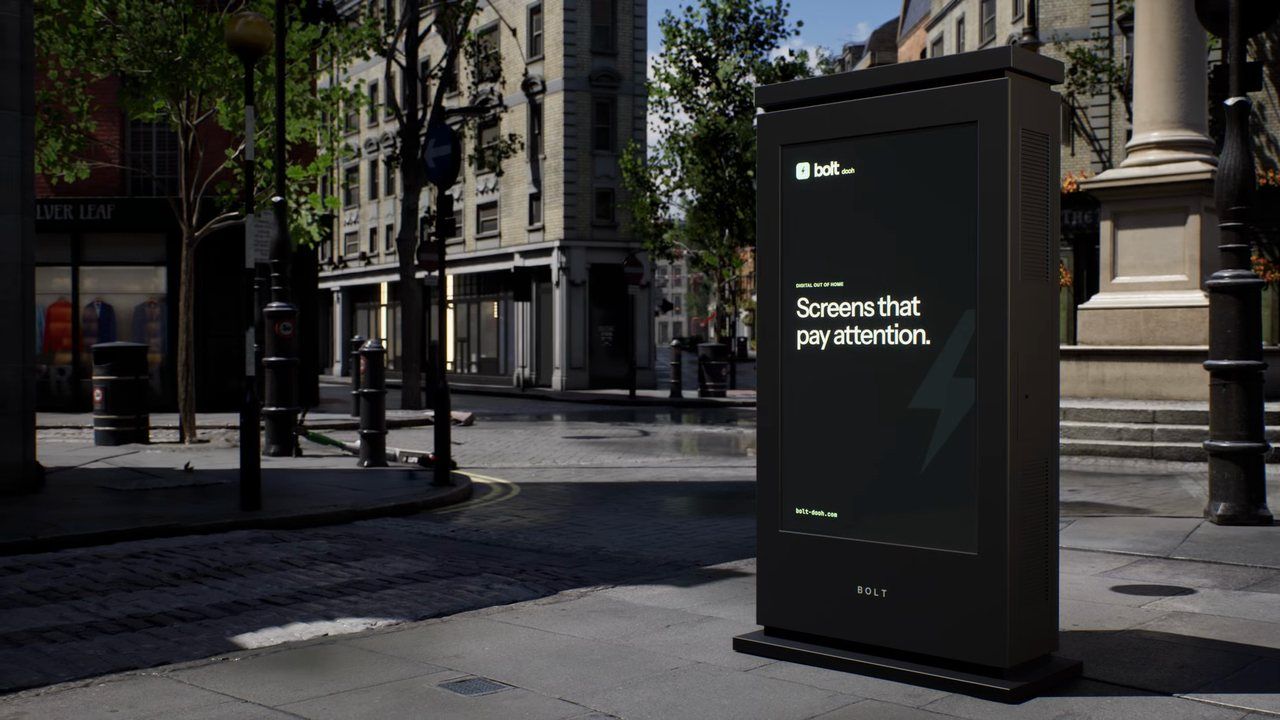

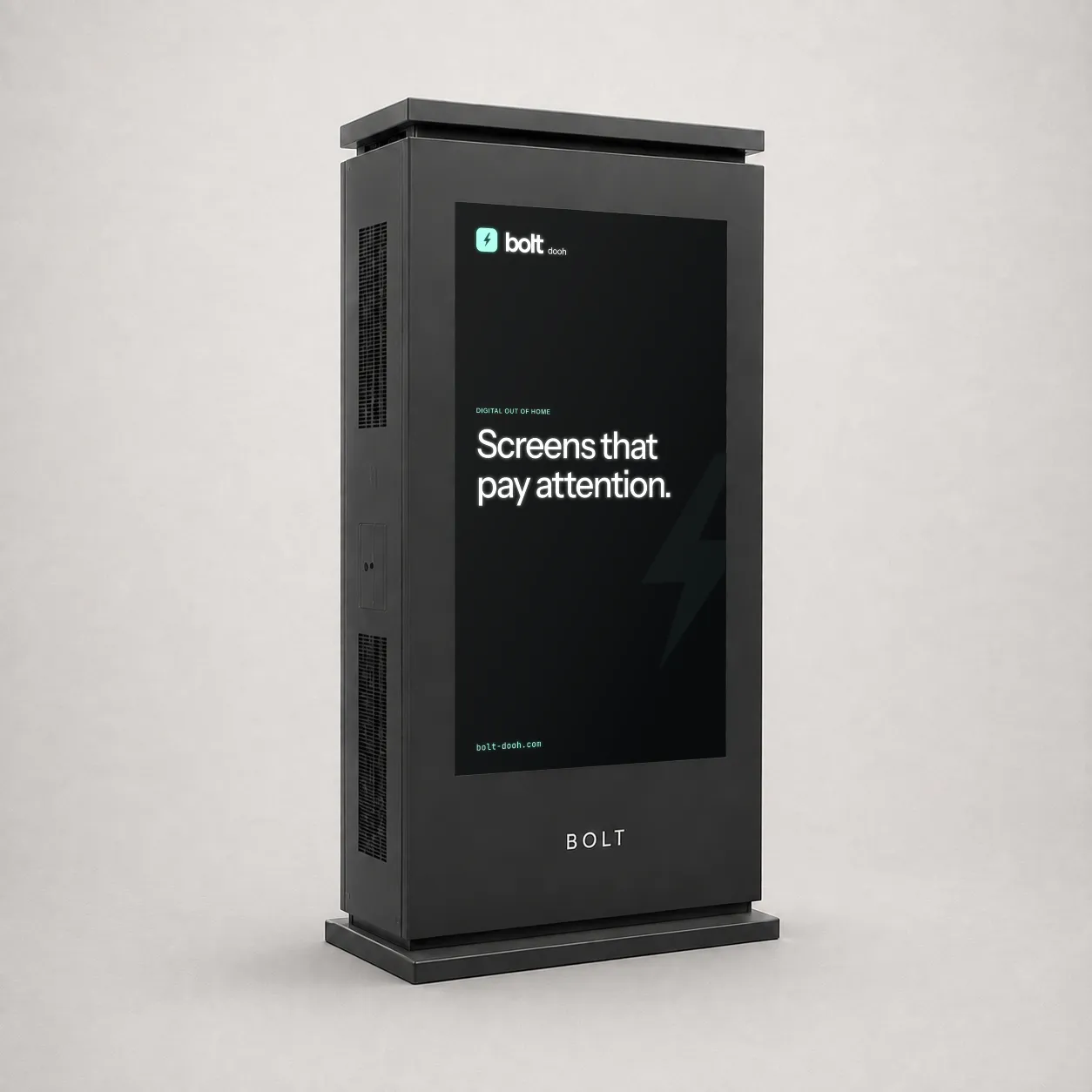

The Double Totem

High-traffic streets, plazas, pedestrian arteries.

55″ · ex VAT
£8,495
From
£8,495 · 55″
Brightness
2 500 nit
Sides
Double
Panel
685 × 1218 mm
Weight
320 kg
Install · Tempered glass in a metal frame. Ground-anchored steel base, two synced panels back-to-back.
— Size guide

Four sizes.
Real-world scale.

Every format ships in four panel sizes. Shown at relative scale below. 4 sizes

BOLT

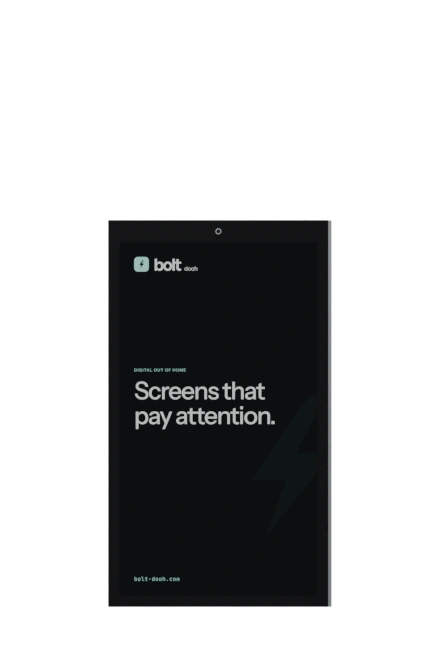

55″
685 × 1218 mm
27.0″ × 48.0″
40 kg indoor
70 kg outdoor
BOLT

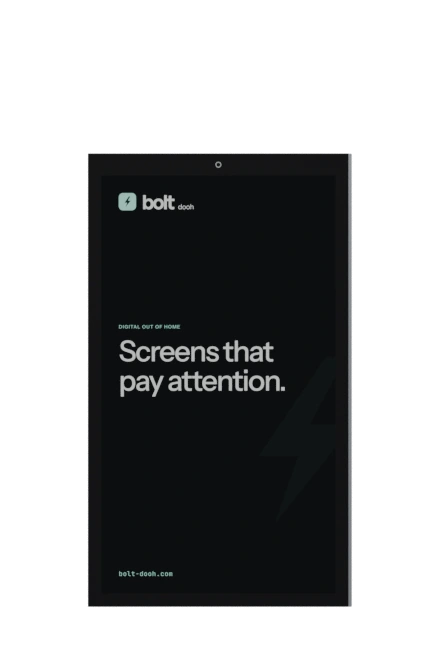

65″
810 × 1440 mm
31.9″ × 56.7″
52 kg indoor
95 kg outdoor
BOLT

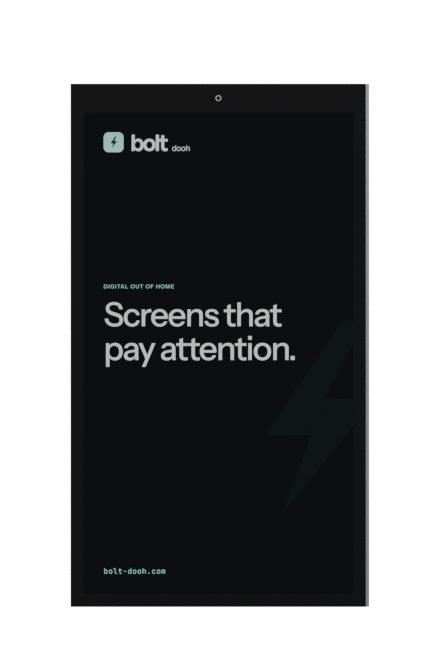

75″
933 × 1660 mm
36.7″ × 65.4″
64 kg indoor
130 kg outdoor
BOLT

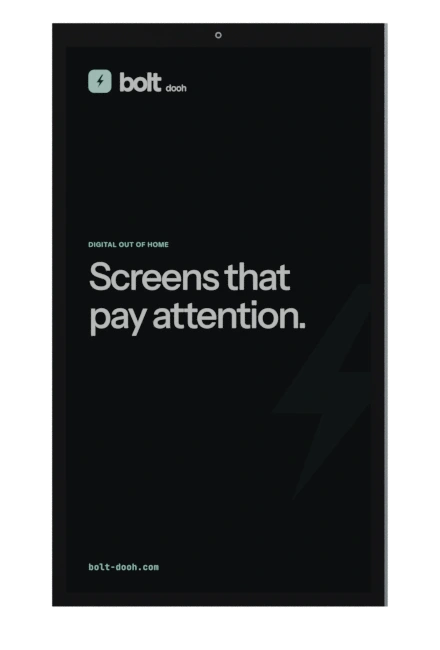

85″
1055 × 1880 mm
41.5″ × 74.0″
82 kg indoor
175 kg outdoor
55″
Tight spaces, in-store, lift lobbies, corridor totems.
65″
Standard format for indoor concourses and small forecourts.
75″
Hero placements, shopfronts, double-sided street totems.
85″
Anchor screens, building façades, major thoroughfares.
— Price list

All seven formats,
all four sizes.

Trade prices, ex VAT, ex works UK. Currency shown in GBP. Volume discounts from 5 units. 7 formats

FormatEnv.Sides55″65″75″85″
The Wall
Single-sided · Indoor
Indoor
Single
£2,195
£3,195
£4,195
£5,295
The Window
Single-sided · Indoor
Indoor
Single
£2,295
£2,995
£3,995
£3,999
The Single Totem
Single-sided · Indoor
Indoor
Single
£2,195
£2,795
£3,595
£4,295
The Double Totem
Double-sided · Indoor
Indoor
Double
£4,295
£4,995
£6,295
£7,295
The Wall
Single-sided · Outdoor
Outdoor
Single
£3,995
£5,295
£6,995
£9,495
The Single Totem
Single-sided · Outdoor
Outdoor
Single
£6,495
£7,995
£11,995
£14,995
The Double Totem
Double-sided · Outdoor
Outdoor
Double
£8,495
£11,495
£14,995
£19,995
All panels: 4K UHD, 24/7-rated commercial LCD, mounted portrait. Outdoor units IP55, −20 °C to +50 °C operating range, with full remote diagnostics. Bundled BOLT player and ambient light sensor on every unit.
Prices ex VAT, ex works UK. Shipping, installation and commissioning quoted per site. Lead times: 4 weeks stock sizes, 8 weeks bespoke. 12-month hardware warranty included.
— Built by us

Every screen ships
ready to play.

◆ Designed and built by BOLT
Designed by BOLT. Built to our own spec. Loaded with BOLT and bench-tested before it leaves the building. Lead times: 4 weeks for stock sizes, 8 weeks for bespoke.
◆ Pre-flashed BOLT player
Plug in power and network. Screen registers itself to your network within 90 seconds.
◆ 12-month hardware warranty
Covers the panel, player and PSU. Extended cover up to 36 months is available. Talk to us for terms.
◆ Remote diagnostics · outdoor
Outdoor units ship with temperature, brightness, uptime, sync and network telemetry surfaced live in your BOLT dashboard. Indoor units report player status only.
— Add-ons & options

Spec it your way.

Cosmetic and functional add-ons, specified at order and fitted in the factory. They add to the build lead time and shipping, so spec them up front. 3 options

/01 Per unit

Custom logo print

Silk-screen on cabinet front.

£55
per screen
/02 Per unit

Bespoke RAL colour

Any RAL Classic, cabinet & plinth.

£60
per screen
/03 Per unit

LED backlit logo

Illuminated logo strip on plinth.

£150
per screen

Tell us where it goes.
We'll spec it.

A site photo and a postcode is all we need. Format, size and quote back within 48 hours.

Request a survey ↗ Request a spec sheet
